FTTH Cable Production Line Technology Explained
The fiber optic cable production process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This approach boosts yield and speeds up market entry. It meets the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Modern Fiber Optic Cable Manufacturing Components
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems produce 600–900 µm jackets for indoor as well as drop cables.
SZ stranding lines use servo-controlled pay-off together with take-up units to handle up to 24 fibers using accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing together with extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs as well as UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This transition supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off together with take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID together with precision heaters ensures consistent extrusion consistency.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Module | Key Benefit |
|---|---|---|
| Fiber drawing | Automated draw tower with tension feedback | Consistent core diameter and low attenuation |
| Fiber secondary coating | Dual-layer UV coaters | Even 250 µm coating that improves durability |
| Coloring | Multi-channel fiber coloring machine | Accurate identification for splicing and installation |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Sheathing & extrusion | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Cooling and curing | Water troughs and UV dryers | Fast profile stabilization and reduced defects |
| Quality testing | Real-time attenuation and geometry measurement | Immediate quality verification and compliance data |
Compliance using IEC 60794 together with ITU-T G.652D/G.657 variants is standard. Cable makers typically certify to ISO 9001, CE, together with RoHS. These credentials enable diverse applications, from FTTH drop cable manufacturing to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding together with cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface consistency. That protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, together with UV ovens. Modern systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends together with supports consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection together with a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance as well as stripability. That is useful when fibers are prepared for connectorization.
Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-output quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters guide preventive maintenance as well as process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-output fiber optic cable line output.
Fiber Draw Tower And Optical Preform Processing
This fiber draw tower is the core of optical fiber drawing. This system softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. This process step sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower employs real-time diameter feedback together with tension management. This line helps prevent microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable production process. Advanced towers log metrics for traceability as well as rapid troubleshooting.
Output output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, together with geometric tolerances. These services help manufacturers scale toward high-output fiber optic cable manufacturing while maintaining ISO-level quality checks.
| Key Feature | Purpose | Typical Goal |
|---|---|---|
| Multi-zone heating furnace | Uniform preform heating for stable glass viscosity | Stable draw speed and refractive profile |
| Online diameter feedback control | Preserve core/cladding geometry and lower attenuation | ±0.5 μm tolerance |
| Tension and cooling management | Reduce microbends and maintain fiber strength | Defined tension by fiber type |
| Integrated automated pay-off | Reliable handoff to coating and coloring stages | Matched feed rates to avoid slip |
| Inline test stations | Check attenuation, tensile strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |

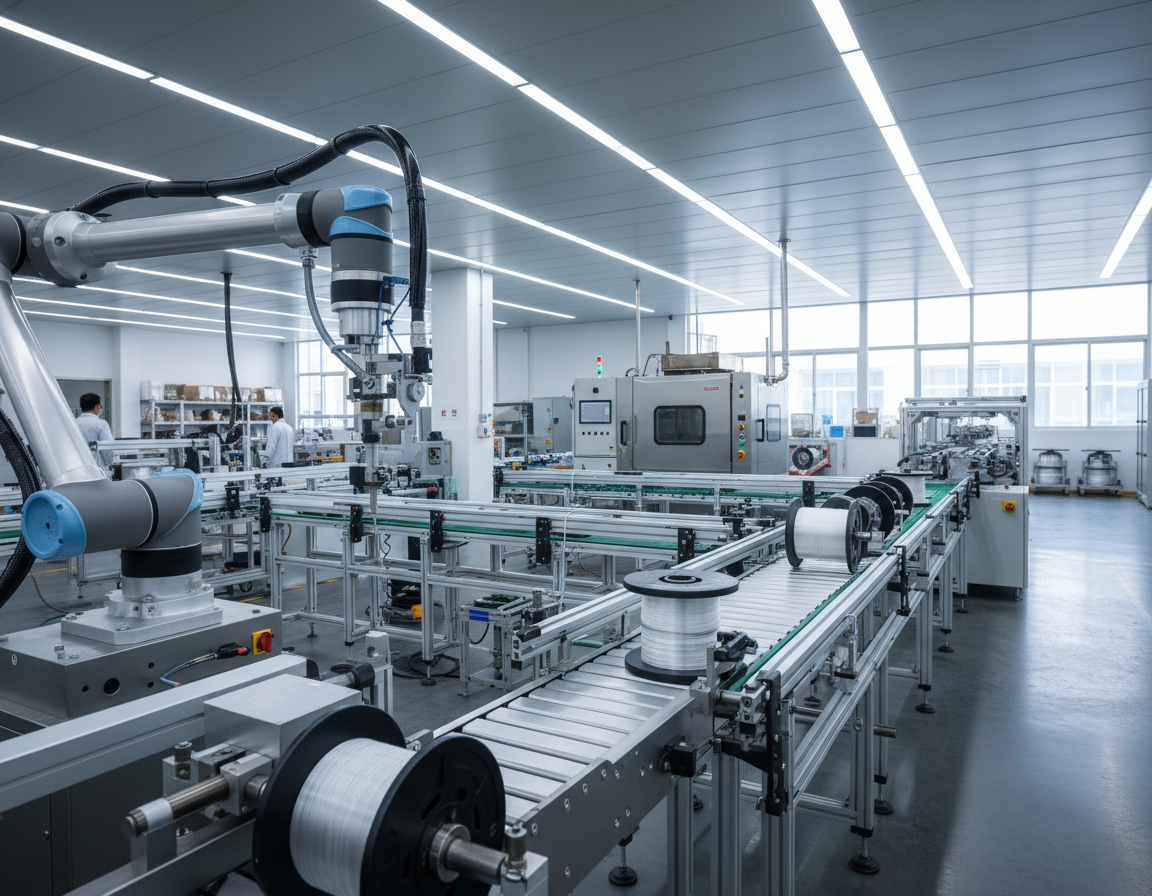

Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Current precision stranding equipment relies on servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, together with optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows together with cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly lowers field faults together with accelerates network deployment.
Quality control integrates high-spec fiber identification systems into manufacturing lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, as well as coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs together with material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible featuring common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye together with other established vendors offer customizable channels, remote diagnostics, as well as onsite training. That support reduces ramp-up time and enhances the reliability of fiber optic cable line output equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, together with aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility using armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable manufacturing machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Current data networks require efficient assemblies that pack more fibers into less space. Cable makers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That method relies on parallel processes and precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in line output. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances together with material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible using MPO trunking together with high-count backbone systems.
Production controls together with speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration using sheathing together with testing stations support bespoke high-output fiber cable production line requirements.
| Production Feature | Fiber Ribbon System | Compact Fiber Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | As high as 800 m/min | Typically up to 600–800 m/min | Greater throughput for large-scale deployments |
| Main production steps | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Stable geometry and reduced insertion loss |
| Materials | Specialty tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Durable performance and safety compliance |
| Quality testing | In-line attenuation and geometry checks | Precision dimensional control with tension monitoring | Fewer field failures and quicker deployment |
| Integration | Integrated sheathing with splice-ready stacking | Modular units for high-density cable solutions | More efficient MPO trunk and backbone deployment |
How To Optimize High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
FTTH Application Cabling Systems
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation together with easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable line output line manufacturers deliver turnkey layouts, remote monitoring, and operator training. That cuts ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
